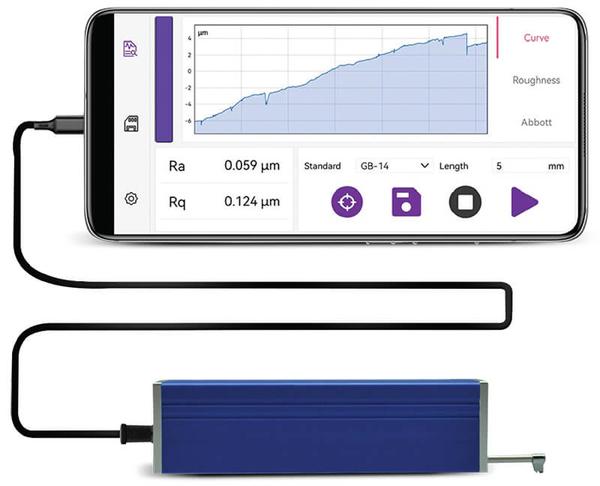

MSJ 210 Mobile Generation Surface Roughness Tester

MSJ-210 Surface Roughness Tester The MSJ-210 Surface Roughness Tester is an intelligent roughness testing instrument that combines highly integrated sensing technology with mobile connectivity. Unlike traditional roughness testers, the MSJ-210 replaces the conventional display unit with a dedicated mobile application, enabling users to perform measurements, analyze results, store data, and generate reports directly from their smartphone. By connecting the smart sensor to a mobile device, the instrument provides a seamless testing experience with enhanced data management, report generation, and multi-platform data sharing capabilities. This innovative approach significantly improves testing convenience and operational efficiency. Features • Intelligent mobile app-based roughness measurement • High-precision inductive sensor with optimized structure • Five filtering methods: Gaussian, FFT, PC, DP, and 2RC • Compatible with multiple international roughness standards • Supports JIS-82, JIS-87, JIS-94, JIS-01, JIS-13 • Supports ISO-84, ISO-97, DIN-90, ASME-95, and GB-14 standards • Convenient smartphone-based measurement evaluation and analysis • Automatic parameter selection for simplified operation • Generates PDF test reports • Exports measurement data in CSV format • Mobile-based data storage and management • Easy data sharing and multi-platform connectivity Technical Specifications Detection Principle: Inductive Type Measuring Range: 200 μm Stylus Radius: 5 μm Stylus Material: Diamond Measuring Force: 4mN (0.4gf) Stylus Angle: 90° Guide Head Longitudinal Radius: 45 mm Indication Error: Not More Than ±10% Indication Variability: Not More Than 6% Display Content: • Measurement Information • Menu and Prompt Information • Measurement Conditions • Calibration Functions • Mobile Communication Settings • Report Output Functions • Non-Filtered Profile Graphics • Filtered Profile Graphics • TP Curves Supported Roughness Parameters Ra75, Rq, Rp, Rv, Rc, Rt, S, R3z, PPI, Ra, Rsk, Rku, Ry, Sm, Rz, Pc, Rλq, Ir, RSm, Rz94, RPc, RzJ, Rpm, HSC, Rk, Rpk, Rvk, Mr1, Mr2, V0, K, A1, A2, Rmr(i), Rmr2(i), Rdc(i) Standard Delivery • Actuator Host – 1 Pc • Sensor / Data Cable – 1 Pc • Adjustable Stand – 1 Pc • Roughness Standard Test Block – 1 Pc Product Video: Paste YouTube Video Link Here For more information about the MSJ-210 Surface Roughness Tester, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Surface Roughness Testers

TR 410 Mini Portable Roughness Tester

TR410 Mini Portable Surface Roughness Tester Applications The TR410 Mini Portable Surface Roughness Tester is a compact and high-precision instrument designed for measuring surface roughness on both metallic and non-metallic materials. Its lightweight pocket-size design makes it ideal for on-site inspections, production environments, quality control departments, machining workshops, automotive manufacturing, metal processing, and maintenance applications. The instrument provides fast and reliable roughness measurements while displaying measurement values and waveforms simultaneously. Features • Compact mini pocket-size design with integrated sensor • High-accuracy surface roughness measurement • Measures 7 roughness parameters: Ra, Rz, Rq, Rt, Rp, Rv, Rc • Durable aluminum die-cast housing with excellent anti-electromagnetic interference capability • Advanced ARM processor for fast data processing and calculation • Large 2.4-inch IPS TFT display with high brightness and wide viewing angle • Displays measurement values and roughness waveforms simultaneously • Built-in rechargeable lithium-ion battery for long operating time • Intelligent battery management and charging control circuit • Automatic power-off function for energy saving • Low-power hardware and software design • Protective sensor door to safeguard the stylus and ensure measurement accuracy • Lightweight and portable for field and workshop use • Suitable for metal and non-metal surface inspection Technical Specifications Model: TR410 Mini Measurement Parameters: Ra, Rz, Rq, Rt, Rp, Rv, Rc Stroke Length: 5.6 mm Sampling Length: 0.25 mm, 0.80 mm, 2.50 mm Evaluation Length: 1.25 mm, 4.0 mm Measuring Range: • Ra, Rq: 0.05 – 10.0 μm • Rz, Rt, Rp, Rv, Rc: 0.1 – 50 μm Indication Error: ±10% Repeatability: <6% Stylus Tip Angle: 90° (+5° / -10°) Tip Radius: 10 μm ± 1 μm Sensor Guide Head Pressure: ≤ 0.5 N Battery: Rechargeable Lithium-Ion Battery Dimensions: 73 × 28 × 62 mm Weight: 220 g Operating Temperature: -20°C to 40°C Relative Humidity: <90% Operating Conditions: Free from excessive vibration and corrosive environments Standard Configuration • Roughness Tester Host – 1 Pc • Standard Test Block – 1 Pc • User Manual – 1 Pc • Calibration Certificate – 1 Pc • Charging Cable – 1 Pc • Instrument Carrying Box – 1 Pc Product Video: Paste YouTube Video Link Here For more information about the TR410 Mini Portable Surface Roughness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Surface Roughness Testers

TR 220 Surface Roughness Tester

TR220 Surface Roughness Tester Applications The TR220 Surface Roughness Tester is a portable, high-precision instrument designed for measuring surface roughness across a wide range of industrial applications. Featuring an advanced ARM processor and integrated sensor design, it delivers accurate, reliable, and efficient roughness measurements. The instrument is widely used in automobile manufacturing, machining, metal processing, mould making, printing, packaging, quality control laboratories, and engineering industries. Features • Measures 14 roughness parameters including Ra, Rq, Rz, Rt, Rp, Rv, Rs, RSm, Rsk, Rku, RPc, Ry, Rmax, and R3z • Compact mechatronic design with lightweight and portable construction • High-performance ARM processor for fast data processing and improved accuracy • Supports ISO, DIN, ANSI, and JIS international standards • Advanced filter options including Gauss, D-P, RC, and PC-RC • High-brightness 2.0-inch IPS display with excellent viewing angles • Displays measurement values, waveforms, graphs, and roughness profiles • Built-in 1000mAh rechargeable lithium-ion battery for long operating time • Stores up to 500 sets of measurement data and waveforms • Bluetooth printing support for real-time report generation • USB and Bluetooth data output options • Automatic power-off function for extended battery life • Stylus protection system for enhanced durability and measurement accuracy • Compatible with optional curved surface, small hole, and deep groove sensors • Supports waveform display and roughness curve analysis Technical Specifications Model: TR220 Detection Principle: Inductive Measurement Parameters: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, RSk, Rku, RPc, Ry, Rmax, R3z Measurement Range: 320 μm Maximum Measuring Range: • Ra, Rq: 0.005 μm – 320 μm • Rz, Ry, Rt, Rp, Rm: 0.02 μm – 320 μm • Rsm, Rs: 1 mm • Rmr: 0 – 100% Resolution: 0.001 μm Accuracy Error: ≤ ±8% Value Variability: ≤ 5% Stylus Tip Radius: 5 μm Stylus Material: Diamond Measuring Force: ≤ 4 mN Stylus Angle: 90° Leader Longitudinal Radius: 45 mm Sample Length: 0.25 mm, 0.80 mm, 2.50 mm Evaluation Length: 1L – 5L Selectable Maximum Drive Travel: ≤ 17.5 mm Power Supply: Built-in Rechargeable Lithium-Ion Battery / External Power Adapter Data Output: Bluetooth, USB Dimensions: 156 × 55 × 46.5 mm Weight: ≤ 398 g Operating Temperature: -20°C to 40°C Relative Humidity: <90% Optional Accessories • Curved Surface Sensor • Small Hole Sensor • Deep Groove Sensor • Extension Rod • Bluetooth Printer • Measuring Platform Standard Configuration • Roughness Tester Host • Sensor Case • Standard Sensor • Data/Charging Cable • Roughness Standard Test Block • 5V/2A Charger • User Manual • Calibration Certificate • Instrument Carrying Case Product Video: Paste YouTube Video Link Here For more information about the TR220 Surface Roughness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Surface Roughness Testers

TR540 Surface Roughness Tester

TR540 Surface Roughness Tester Applications The TR540 Surface Roughness Tester is a high-performance instrument designed for precise measurement and analysis of surface roughness on a wide range of materials. It is widely used in machining, aerospace, automotive components, electronics, communications, power plants, quality control laboratories, universities, research institutions, and technical inspection departments. The tester provides accurate surface finish evaluation and complies with major international roughness measurement standards. Features • Advanced ARM processor for fast data processing and low power consumption • Real-time operating system supporting multi-task parallel processing • Measures multiple roughness parameters with a wide measuring range • High-brightness 128 × 64 OLED display with full viewing angle • Displays measurement values, parameters, and roughness profiles graphically • Built-in rechargeable lithium battery for portable operation • Low battery indicator for timely charging reminders • Internal FLASH memory stores up to 200 groups of measurement data and waveforms • Supports Micro SD card expansion up to 16GB • Compatible with multiple optional sensors for specialized applications • Optimized sensor structure for stable and reliable measurements • USB connectivity for PC and printer communication • Supports software upgrades via USB interface • Complies with ISO, DIN, JIS, and ANSI international standards • Suitable for workshop, laboratory, and field inspection applications Technical Specifications Model: TR540 Measurement Parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rv, Rmax, R3z, RSk, RS, RSm, Rmr Measurement Range: ±20 μm, ±40 μm, ±80 μm Maximum Display Resolution: 0.001 μm Filter Types: RC, PC-RC, GAUSS, D-P Sampling Length: 0.25 mm, 0.8 mm, 2.5 mm Maximum Drive Stroke: 17.5 mm Minimum Drive Stroke: 1.3 mm Indication Error: ≤ ±10% Value Variability: ≤ ±6% Display: 128 × 64 OLED Display Power Supply: Built-in Rechargeable Lithium Battery Dimensions: 140 × 52 × 48 mm Weight: 440 g Sensor Specifications Detection Principle: Inductive Type Measurement Range: 160 μm Stylus Tip Radius: 5 μm Stylus Material: Diamond Measuring Force: 4 mN (0.4 gf) Stylus Tip Angle: 90° Radius of Skid Curvature: 45 mm Standard Accessories • Host Machine – 1 Pc • Standard Sample Plate – 1 Pc • Sensor Jacket – 1 Pc • RS100 Standard Sensor – 1 Pc • Power Adaptor – 1 Pc • Packing List – 1 Pc • Calibration Certificate – 1 Pc Product Video: Paste YouTube Video Link Here For more information about the TR540 Surface Roughness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Surface Roughness Testers

High Precision Surface Roughness Tester TR 210

Surface Roughness Tester Applications The Surface Roughness Tester is a high-precision instrument designed for measuring surface roughness on metallic and non-metallic materials. It is widely used in manufacturing, machining, automotive, aerospace, metalworking, quality control, and precision engineering industries. The device helps evaluate surface finish quality and ensures compliance with industrial standards. Features • Measures 7 roughness parameters: Ra, Rz, Rq, Rt, Rp, Rv, and Rc • High-precision inductive sensor for accurate measurements • Advanced GAUSS filtering technology • Complies with ISO 4287 surface roughness standards • Large 256 × 64 OLED display for clear readings • Built-in rechargeable lithium-ion battery • More than 15 hours of continuous operation on a single charge • No memory effect battery technology • Durable aluminum alloy body construction • Excellent resistance to electromagnetic interference • Portable and easy-to-use design • Suitable for laboratory and industrial quality inspection Technical Specifications Parameters: Ra, Rz, Rq, Rt, Rp, Rv, Rc Measuring Range: ±80 μm Display Accuracy: ±10% Indication Variability: ≤6% Resolution: 0.01 μm Probe Type: Inductive Stylus Radius: 5 μm Stylus Material: Diamond Measuring Force: 4 mN (0.4 gf) Measuring Units: μm / μin Sensor Angle: 90° Longitudinal Radius of Guide Head: 45 mm Maximum Driving Length: 6 mm Traverse Speed: • Cut-off 0.25 mm: 0.135 mm/s • Cut-off 0.8 mm: 0.5 mm/s • Cut-off 2.5 mm: 1.0 mm/s Power Supply: Built-in Rechargeable Battery Product Video: Paste YouTube Video Link Here For more information about the Surface Roughness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Surface Roughness Testers

TR-110 Advance Surface Roughness Tester

TR-110 ADVANCE Surface Roughness Tester Applications The TR-110 ADVANCE Surface Roughness Tester is a compact and high-precision instrument designed for measuring surface roughness on both metallic and non-metallic materials. It is widely used in manufacturing, machining, automotive, engineering, quality control, and metal processing industries for evaluating surface finish and product quality. The instrument is suitable for measuring flat surfaces, external cylindrical surfaces, conical surfaces, and grooves larger than 80 × 30 mm. Features • High-accuracy surface roughness measurement • Compact, lightweight, and portable design • Wide measuring range for various applications • Stable performance with optimized electronic circuitry • Measures multiple roughness parameters including Ra, Rz, Rq, and Rt • Easy-to-use operation for quick inspection tasks • Suitable for metal and non-metal surface testing • Measures flat, cylindrical, conical, and groove surfaces • Integrated power, drive, and display system • Rechargeable 3.7V lithium battery for portable operation • USB connectivity for data transfer and charging • Ideal for workshop and field inspection applications Technical Specifications Model: TR-110 ADVANCE Measurement Parameters: Ra, Rz, Rq, Rt Stroke Length: 6 mm Sample Length: 0.25 mm, 0.80 mm, 2.50 mm Evaluation Length: 1.25 mm, 4.0 mm Measuring Range: • Ra: 0.05 – 10.0 μm • Rz: 0.1 – 50 μm Accuracy: ±15% Repeatability: <12% Stylus Tip Radius: 10 μm ± 1 μm Battery: 3.7V Rechargeable Lithium Battery Dimensions: 106 × 70 × 24 mm Weight: 200 g Operating Temperature: -20°C to 40°C Relative Humidity: <90% Operating Conditions: Free from excessive vibration and corrosive environments Standard Accessories • Main Unit – 1 Pc • Battery Charger – 1 Pc • USB Cable – 1 Pc • Standard Test Block – 1 Pc For more information about the TR-110 ADVANCE Surface Roughness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Surface Roughness Testers

TR-200 (Advance) Surface Roughness Tester

TR-200 (ADVANCE) Surface Roughness Tester Applications The TR-200 (ADVANCE) Surface Roughness Tester is a high-precision instrument designed for accurate measurement and analysis of surface roughness across a wide range of industrial applications. It is suitable for quality control, manufacturing, machining, automotive, aerospace, metalworking, and precision engineering industries. The device can measure multiple roughness parameters, display roughness profiles and curves, and provide wireless connectivity for enhanced productivity and reporting. Features • Measures up to 13 surface roughness parameters • High-accuracy roughness measurement with digital profile display • Displays roughness values, profiles, and measurement curves • Probe position indicator for improved measurement accuracy • Bluetooth connectivity for wireless printing and data transfer • Compatible with mobile phones and computers for wireless operation • USB output for easy data management and reporting • Stores up to 100 measurement results in memory • Automatic power-off function for battery saving • Built-in rechargeable battery for portable operation • Supports wireless printing through optional Bluetooth printer • User-friendly interface with advanced roughness analysis capabilities Technical Specifications Model: TR-200 (ADVANCE) Roughness Parameters: Ra, Rz, Ry, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp Measurement Range: 160 μm Accuracy: ±10% Resolution (Ra): 0.001 μm Probe Type: Inductive Stylus Radius / Range: 5 μm / 900 μm Stylus Material: Diamond Measuring Force: 0.4 mN Measuring Units: μm, μin Cut-off Lengths: 0.25 mm, 0.8 mm, 2.5 mm Number of Cut-offs: 1 to 5 Traverse Speed: 0.5 mm/s, 1.0 mm/s Memory Capacity: 100 Measurement Results Output: USB Power Supply: Built-in Rechargeable Battery Dimensions: 140 × 52 × 48 mm Weight: 440 g Standard Accessories • Main Unit • Calibration Block • Calibration Support • Adjustable Stand • Probe Cover • USB Cable and Software • AC/DC Adaptor • Presurf Mobile 1.0 Software Optional Accessories • Extension Rod (ER 100) • Curved Surface Probe (RS 110) • Groove Probe 3 mm (RS 130) • Deep Groove Probe 10 mm (RS 131) • Advanced Software (Presurf-10) • Test Stand (TS 620) • Printer (PRT100, PRT200, PRT300) Product Video: https://youtu.be/TIZbDcQ9AAY?si=esBjVx8_PQmInyTt For more information about the TR-200 (ADVANCE) Surface Roughness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Surface Roughness Testers

TR-310 Surface Roughness Tester

Surface Roughness Tester Applications The Surface Roughness Tester is a portable and easy-to-use instrument designed to measure the surface roughness of both metallic and non-metallic materials. It is ideal for quality control, machining inspection, manufacturing, automotive, engineering, and precision component testing applications. Features • Measures surface roughness on metal and non-metal surfaces • Supports multiple roughness parameters including Ra, Rz, Rq, and Rt • External calibration function through the keypad • High-speed DSP microprocessor for fast and accurate measurements • Dual OLED display screens for clear visibility • USB data output for easy data transfer • Wide measuring range suitable for various materials • Measures flat, cylindrical, and inclined surfaces • Built-in rechargeable 3.7V lithium-ion battery • Mobile App support for convenient data management Technical Specifications Parameters: Ra, Rz, Rq, Rt Tracing Length: 6 mm Tracing Speed: 1.0 mm/s Resolution (Ra): 0.001 μm Cut-off Lengths: 0.25 mm, 4.0 mm, 5.0 mm Measuring Range: • Ra, Rq: 0.05 – 10.0 μm • Rz, Rt: 0.1 – 50 μm Accuracy: ±10% Repeatability: <12% Battery: 3.7V Li-ion Rechargeable Battery Charging Time: 3 Hours Operating Temperature: 20°C to 40°C Relative Humidity: <90% Dimensions: 110 × 81 × 32 mm Weight: 150 g Product Video: https://youtu.be/1gfZBnl79BY?si=F2t0dDNjHwxOGyup For more information about the Surface Roughness Tester, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.
