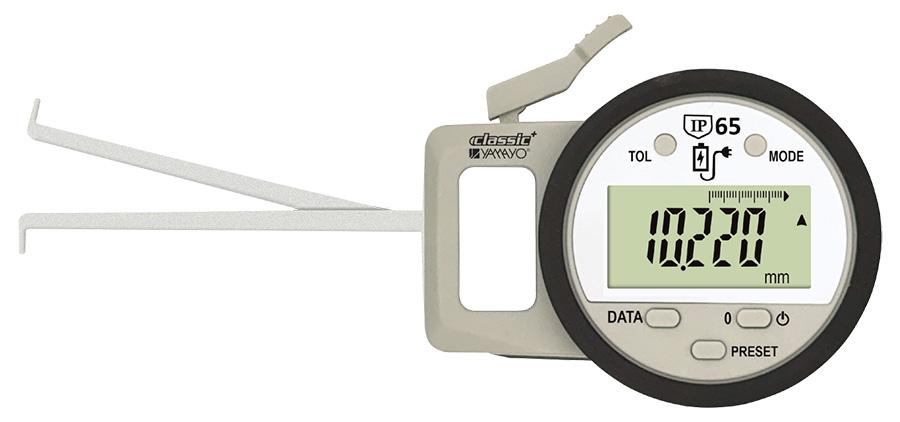

Digimatic Internal Measuring Gauge with Bluetooth

Digimatic Internal Measuring Gauge with Bluetooth The Digimatic Internal Measuring Gauge with Bluetooth is a high-precision digital instrument designed for accurate measurement of internal diameters, bores, grooves, and internal dimensions. Featuring IP65 protection and built-in Bluetooth wireless data transmission, it is ideal for modern manufacturing, quality control, inspection, automotive, aerospace, and engineering applications. The gauge is equipped with a rechargeable lithium battery and advanced digital measurement technology, allowing users to capture, store, and transmit measurement data wirelessly. Its tolerance preset function and high-resolution digital display make it suitable for fast and efficient inspection processes. Features • Precision Internal Diameter Measurement • IP65 Dust and Water Jet Resistant • Built-in Bluetooth Wireless Data Transmission • Rechargeable Lithium Battery • High Accuracy Digital Measurement • Tolerance Preset Function • Preset Measurement Capability • Inch and Millimeter Conversion • Suitable for Bore and Internal Dimension Inspection • Ideal for Smart Quality Control Systems Functions • On / Off • Origin (Zero Setting) • Preset • Inch / Millimeter Conversion • Tolerance Preset • Bluetooth Data Transmission Technical Specifications Model: 490B-15 • Measuring Range: 5 – 15 mm (0.2 – 0.6“) • Resolution: 0.002 mm / 0.0001“ • Accuracy: ±0.015 mm • A: 2.3 mm • B: 0.8 mm • L: 35 mm --- Model: 490B-30 • Measuring Range: 10 – 30 mm (0.4 – 1.2“) • Resolution: 0.005 mm / 0.0002“ • Accuracy: ±0.025 mm • A: 5.2 mm • B: 1.2 mm • L: 85 mm --- Model: 490B-50 • Measuring Range: 30 – 50 mm (1.2 – 2“) • Resolution: 0.005 mm / 0.0002“ • Accuracy: ±0.025 mm • A: 7 mm • B: 1.2 mm • L: 85 mm --- Model: 490B-100 • Measuring Range: 50 – 100 mm (2 – 4“) • Resolution: 0.010 mm / 0.0005“ • Accuracy: ±0.050 mm • A: 8.3 mm • B: 2.4 mm • L: 236 mm --- Model: 490B-150 • Measuring Range: 100 – 150 mm (4 – 6“) • Resolution: 0.010 mm / 0.0005“ • Accuracy: ±0.050 mm • A: 8.3 mm • B: 2.4 mm • L: 236 mm --- Model: 490B-200 • Measuring Range: 150 – 200 mm (6 – 8“) • Resolution: 0.010 mm / 0.0005“ • Accuracy: ±0.050 mm • A: 8.3 mm • B: 2.4 mm • L: 236 mm Applications • Internal Diameter Measurement • Bore Inspection • Internal Groove Measurement • Precision Engineering Applications • Automotive Component Inspection • Aerospace Manufacturing • Quality Control Inspection • Production Line Measurement • Smart Manufacturing Systems • Industrial Metrology Applications Product Video: Paste YouTube Video Link Here For more information about the Digimatic Internal Measuring Gauge with Bluetooth, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

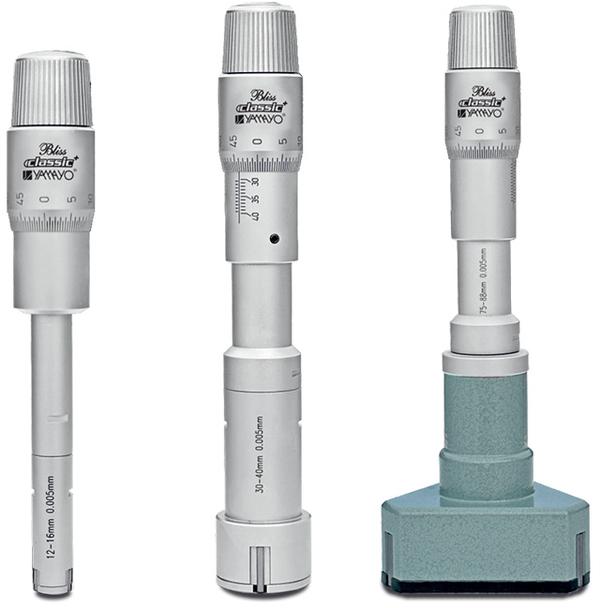

Three Point Internal Micrometers

Three Point Internal Micrometers The Three Point Internal Micrometer is a high-precision instrument designed for accurate measurement of internal diameters, bores, blind holes, and deep holes. The three-point measuring system provides excellent centering and stability, ensuring highly accurate and repeatable measurements compared to conventional bore gauges. Equipped with carbide-tipped contact points and a ratchet stop mechanism, the micrometer delivers consistent measuring force and long-term durability. It is widely used in precision engineering, automotive manufacturing, aerospace, machine shops, quality control laboratories, and metrology applications. The instrument can measure closer to the bottom of blind holes and can be extended for deep-hole measurement using the supplied extension rod. Features • Three-Point Self-Centering Measurement System • Suitable for Blind Hole and Deep Hole Measurement • Carbide-Tipped Measuring Contacts • Ratchet Stop for Consistent Measuring Force • High Accuracy and Repeatability • Excellent Bore Centering Capability • Extension Rod Included • Suitable for Precision Internal Diameter Measurement • Durable Industrial Construction Technical Specifications Graduation • Up to 12 mm Range: 0.001 mm • Above 12 mm Range: 0.005 mm --- Model: 340-008 • Range: 6 – 8 mm • Accuracy: ±4 µm • Setting Ring: Ø6 mm Included • Extension Rod: 100 mm Included --- Model: 340-010 • Range: 8 – 10 mm • Accuracy: ±4 µm • Setting Ring: Ø8 mm Included • Extension Rod: 100 mm Included --- Model: 340-012 • Range: 10 – 12 mm • Accuracy: ±4 µm • Setting Ring: Ø10 mm Included • Extension Rod: 100 mm Included --- Model: 340-016 • Range: 12 – 16 mm • Accuracy: ±4 µm • Setting Ring: Ø16 mm Included • Extension Rod: 150 mm Included --- Model: 340-020 • Range: 16 – 20 mm • Accuracy: ±4 µm • Setting Ring: Ø16 mm Included • Extension Rod: 150 mm Included --- Model: 340-025 • Range: 20 – 25 mm • Accuracy: ±4 µm • Setting Ring: Ø25 mm Included • Extension Rod: 150 mm Included --- Model: 340-030 • Range: 25 – 30 mm • Accuracy: ±4 µm • Setting Ring: Ø25 mm Included • Extension Rod: 150 mm Included --- Model: 340-040 • Range: 30 – 40 mm • Accuracy: ±4 µm • Setting Ring: Ø40 mm Included • Extension Rod: 150 mm Included --- Model: 340-050 • Range: 40 – 50 mm • Accuracy: ±5 µm • Setting Ring: Ø40 mm Included • Extension Rod: 150 mm Included --- Model: 340-063 • Range: 50 – 63 mm • Accuracy: ±5 µm • Setting Ring: Ø62 mm Included • Extension Rod: 150 mm Included --- Model: 340-075 • Range: 62 – 75 mm • Accuracy: ±5 µm • Setting Ring: Ø62 mm Included • Extension Rod: 150 mm Included --- Model: 340-088 • Range: 75 – 88 mm • Accuracy: ±5 µm • Setting Ring: Ø87 mm Included • Extension Rod: 150 mm Included --- Model: 340-100 • Range: 87 – 100 mm • Accuracy: ±5 µm • Setting Ring: Ø87 mm Included • Extension Rod: 150 mm Included Applications • Internal Diameter Measurement • Bore Measurement • Blind Hole Inspection • Deep Hole Measurement • Precision Engineering Applications • Automotive Components Inspection • Aerospace Manufacturing • Tool Room Measurement • Metrology Laboratories • Quality Control Inspection Product Video: Paste YouTube Video Link Here For more information about the Three Point Internal Micrometers, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

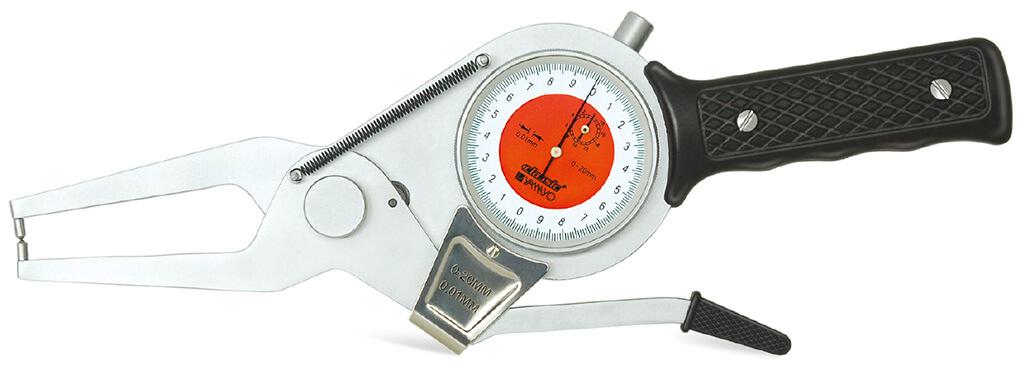

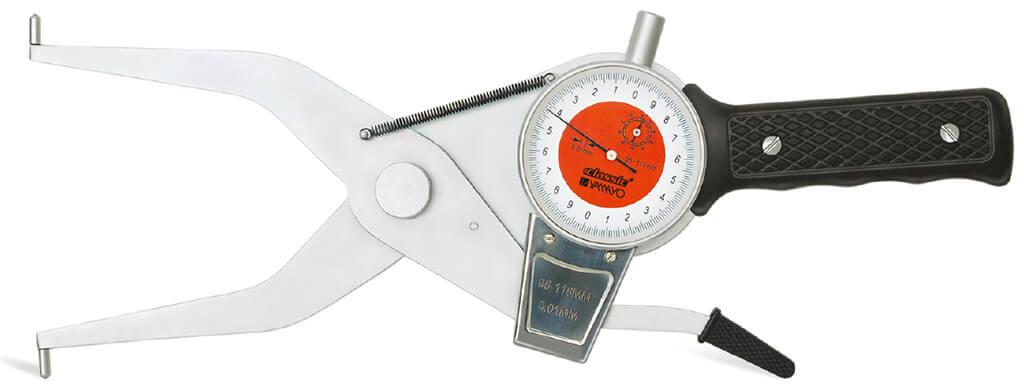

Outside Pistol Caliper Gauges

Outside Pistol Caliper Gauge The Outside Pistol Caliper Gauge is a precision measuring instrument designed for accurate measurement of outside diameters (OD), groove thickness, tube wall thickness, and similar external dimensions. Its ergonomic pistol-style design allows comfortable handling and quick measurements, making it ideal for production inspection, quality control, workshop use, and engineering applications. The gauge provides reliable and repeatable measurements with a clear dial display, enabling operators to inspect external dimensions efficiently. It is widely used in manufacturing industries, machine shops, fabrication units, automotive applications, and inspection departments. Features • Measures Outside Diameters (OD) • Suitable for Groove Thickness Measurement • Ideal for Tube Wall Thickness Inspection • Ergonomic Pistol-Type Design • Precision Dial Measurement • Easy-to-Use and Lightweight Construction • High Accuracy and Repeatability • Suitable for Quality Control and Inspection Applications • Durable Industrial Construction Technical Specifications Model: 465-020 Measurement Range: 0 – 20 mm Graduation: 0.01 mm Accuracy: ±0.04 mm Applications • Outside Diameter Measurement • Tube Wall Thickness Inspection • Groove Thickness Measurement • Pipe and Tube Inspection • Precision Engineering Applications • Manufacturing Quality Control • Machine Shop Measurement • Automotive Component Inspection • Workshop Inspection • Industrial Measurement Applications Product Video: Paste YouTube Video Link Here For more information about the Outside Pistol Caliper Gauge, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

Pistol Type Inside Caliper Gauge

Pistol Type Inside Caliper Gauge The Pistol Type Inside Caliper Gauge is a precision measuring instrument designed for accurate measurement of internal diameters (ID), inside grooves, recesses, and center distances. Its ergonomic pistol-style design allows comfortable handling and easy operation, making it ideal for bore inspection, internal measurement, and quality control applications. Widely used in manufacturing, automotive, machining, engineering, tool rooms, and inspection departments, the gauge provides reliable and repeatable measurements for a variety of internal dimensional inspection tasks. Features • Measures Internal Diameters (ID) • Suitable for Inside Groove Measurement • Measures Center Distance Accurately • Ergonomic Pistol-Type Design • Precision Dial Measurement • Easy Handling and Operation • High Accuracy and Repeatability • Suitable for Bore and Internal Inspection Applications • Durable Industrial Construction Technical Specifications Model: 464-035 • Measuring Range: 15 – 35 mm • Graduation: 0.01 mm • Accuracy: ±0.04 mm • a: 3 mm • L: 50 mm • bØ: 3 mm --- Model: 464-055 • Measuring Range: 35 – 55 mm • Graduation: 0.01 mm • Accuracy: ±0.04 mm • a: 6 mm • L: 80 mm • bØ: 3 mm --- Model: 464-075 • Measuring Range: 55 – 75 mm • Graduation: 0.01 mm • Accuracy: ±0.04 mm • a: 8 mm • L: 90 mm • bØ: 3 mm --- Model: 464-095 • Measuring Range: 75 – 95 mm • Graduation: 0.01 mm • Accuracy: ±0.04 mm • a: 8 mm • L: 100 mm • bØ: 3 mm --- Model: 464-115 • Measuring Range: 95 – 115 mm • Graduation: 0.01 mm • Accuracy: ±0.04 mm • a: 10 mm • L: 150 mm • bØ: 3.2 mm --- Model: 464-135 • Measuring Range: 115 – 135 mm • Graduation: 0.01 mm • Accuracy: ±0.04 mm • a: 10 mm • L: 150 mm • bØ: 3.2 mm Applications • Internal Diameter Measurement • Bore Inspection • Inside Groove Measurement • Center Distance Measurement • Precision Engineering Applications • Automotive Component Inspection • Machine Shop Measurement • Tool Room Inspection • Manufacturing Quality Control • Industrial Internal Measurement Product Video: Paste YouTube Video Link Here For more information about the Pistol Type Inside Caliper Gauge, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

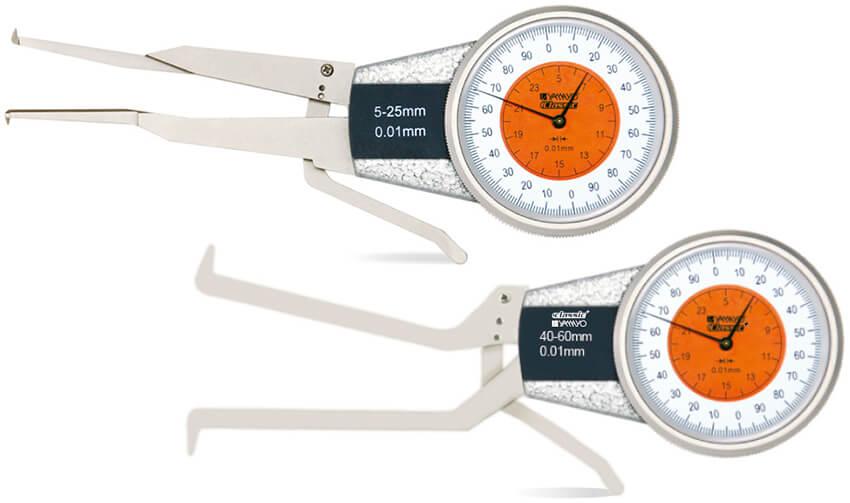

Inside Dial Caliper Gauges

Inside Dial Caliper Gauges The Inside Dial Caliper Gauge is a precision measuring instrument designed for accurate measurement of internal diameters (ID), inside grooves, slot dimensions, and center distances. It is widely used in machining, manufacturing, automotive, engineering, inspection, and quality control applications where reliable internal measurements are required. The gauge features a precision dial indicator mechanism that provides clear and accurate readings, making it ideal for measuring bores, grooves, recesses, and internal features that are difficult to access using conventional measuring instruments. Features • Measures Internal Diameters (ID) • Suitable for Inside Groove Measurement • Measures Center Distance Accurately • Precision Dial Indicator Display • High Accuracy and Repeatability • Compact Design for Internal Measurements • Easy-to-Read Dial Scale • Suitable for Quality Control and Inspection Applications • Durable and Reliable Construction Technical Specifications Model: 463-025 • Measuring Range: 5 – 25 mm • Graduation: 0.01 mm • Accuracy: ±0.03 mm • L: 35 mm • W: 1 mm • H: 1.5 mm • R: 0.3 mm --- Model: 463-030 • Measuring Range: 10 – 30 mm • Graduation: 0.01 mm • Accuracy: ±0.03 mm • L: 55 mm • W: 2 mm • H: 3.5 mm • R: 0.5 mm --- Model: 463-040 • Measuring Range: 20 – 40 mm • Graduation: 0.01 mm • Accuracy: ±0.03 mm • L: 80 mm • W: 3 mm • H: 6.5 mm • R: 0.5 mm --- Model: 463-050 • Measuring Range: 30 – 50 mm • Graduation: 0.01 mm • Accuracy: ±0.03 mm • L: 80 mm • W: 3 mm • H: 8.5 mm • R: 0.5 mm --- Model: 463-060 • Measuring Range: 40 – 60 mm • Graduation: 0.01 mm • Accuracy: ±0.03 mm • L: 80 mm • W: 3 mm • H: 8.5 mm • R: 0.5 mm Applications • Internal Diameter Measurement • Bore Inspection • Inside Groove Measurement • Slot Width Inspection • Center Distance Measurement • Precision Engineering Applications • Automotive Component Inspection • Machine Shop Measurement • Tool Room Inspection • Quality Control Testing Product Video: Paste YouTube Video Link Here For more information about the Inside Dial Caliper Gauges, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

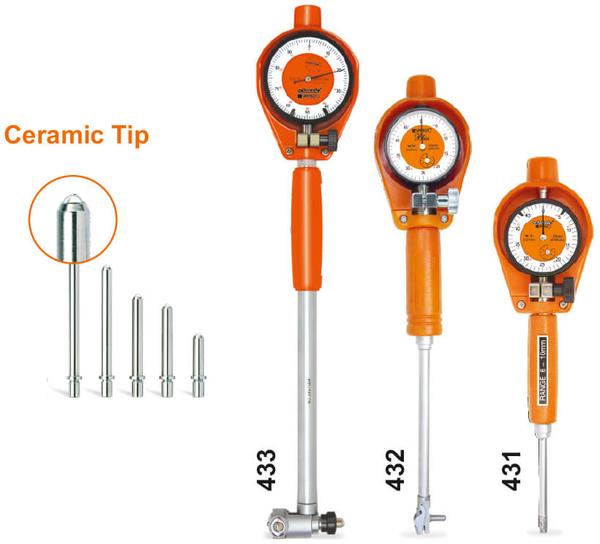

Dial Bore Gauges

Dial Bore Gauges The Dial Bore Gauge is a precision measuring instrument designed for accurate measurement of internal diameters, bore sizes, taper, out-of-roundness, and cylindricity of holes. Widely used in automotive, aerospace, manufacturing, machining, and quality control applications, it enables close-tolerance inspection of bores and internal features. YAMAYO Dial Bore Gauges are supplied with interchangeable anvils and all necessary accessories, allowing a wide range of bore measurements with high accuracy and repeatability. The dial indicator is protected by a rugged cover, ensuring durability and reliable performance in workshop and industrial environments. Features • Precision Measurement of Internal Diameters • Suitable for Bore, Taper, and Roundness Inspection • Supplied with Interchangeable Measuring Anvils • Rugged Protective Cover for Dial Indicator • High Accuracy and Repeatability • Ideal for Close-Tolerance Measurements • Complete Set with Necessary Accessories • Durable Industrial Construction • Easy Setup and Operation Technical Specifications Model: 431-010 • Measuring Range: 6 – 10 mm • Indicator: 3 mm × 0.01 mm • Accuracy: ±0.012 mm • Repeatability: 0.003 mm --- Model: 432-018 • Measuring Range: 10 – 18.5 mm • Indicator: 3 mm × 0.01 mm • Accuracy: ±0.012 mm • Repeatability: 0.003 mm --- Model: 433-035 • Measuring Range: 18 – 35 mm • Indicator: 10 mm × 0.01 mm • Accuracy: ±0.015 mm • Repeatability: 0.003 mm --- Model: 433-060 • Measuring Range: 35 – 60 mm • Indicator: 10 mm × 0.01 mm • Accuracy: ±0.018 mm • Repeatability: 0.003 mm --- Model: 433-160 • Measuring Range: 50 – 160 mm • Indicator: 10 mm × 0.01 mm • Accuracy: ±0.018 mm • Repeatability: 0.003 mm --- Model: 433-250 • Measuring Range: 160 – 250 mm • Indicator: 10 mm × 0.01 mm • Accuracy: ±0.018 mm • Repeatability: 0.003 mm --- Model: 433-450 • Measuring Range: 250 – 450 mm • Indicator: 10 mm × 0.01 mm • Accuracy: ±0.018 mm • Repeatability: 0.003 mm --- Model: 433-600 • Measuring Range: 400 – 600 mm • Indicator: 10 mm × 0.01 mm • Accuracy: ±0.020 mm • Repeatability: 0.003 mm Applications • Bore Diameter Measurement • Internal Diameter Inspection • Cylinder Bore Measurement • Engine Block Inspection • Taper Measurement • Roundness Checking • Automotive Manufacturing • Precision Engineering Applications • Machine Shop Inspection • Quality Control and Metrology Product Video: Paste YouTube Video Link Here For more information about the Dial Bore Gauges, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

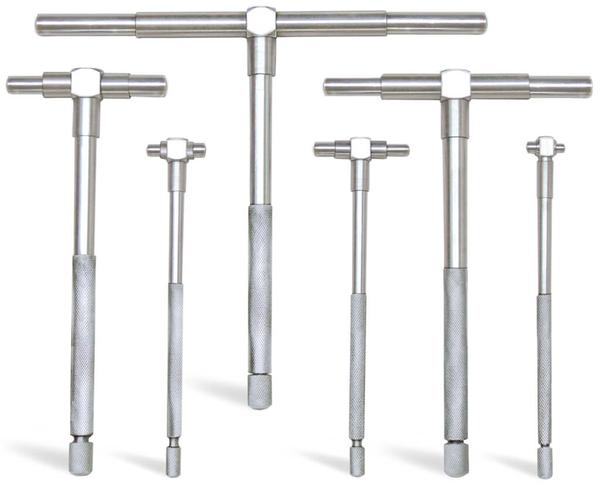

Telescoping Gauges

Telescoping Gauges The Telescoping Gauge Set is a precision measuring tool designed for measuring internal diameters of holes, bores, and widths of slots. The gauge transfers the internal dimension, which is then accurately measured using an outside micrometer. This method provides reliable and accurate internal measurements in machining, manufacturing, automotive, tool room, and inspection applications. Supplied as a complete set of six gauges, the Telescoping Gauge Set covers a wide measuring range and is ideal for measuring bores, recesses, grooves, and internal dimensions that are difficult to measure directly. Features • Suitable for Measuring Internal Diameters of Holes and Bores • Used for Measuring Width of Slots and Grooves • Measurement Readings Obtained Using Outside Micrometer • Spring-Loaded Telescoping Measuring Ends • High Accuracy Internal Measurement Transfer • Durable and Reliable Construction • Easy-to-Use Design • Supplied as a Set of 6 Gauges • Suitable for Workshop and Inspection Applications Technical Specifications Model: 612-150 Total Measuring Range: 8 – 150 mm Set Includes: Gauge 1 • Range: 8 – 12.7 mm • Length (L): 115 mm • AØ: 4 mm • BØ: 3 mm • CØ: 6 mm --- Gauge 2 • Range: 12.7 – 19 mm • Length (L): 115 mm • AØ: 5 mm • BØ: 4 mm • CØ: 6 mm --- Gauge 3 • Range: 19 – 32 mm • Length (L): 115 mm • AØ: 5 mm • BØ: 4 mm • CØ: 6 mm --- Gauge 4 • Range: 32 – 54 mm • Length (L): 138 mm • AØ: 7 mm • BØ: 6 mm • CØ: 7 mm --- Gauge 5 • Range: 54 – 90 mm • Length (L): 138 mm • AØ: 7 mm • BØ: 6 mm • CØ: 7 mm --- Gauge 6 • Range: 90 – 150 mm • Length (L): 138 mm • AØ: 7 mm • BØ: 6 mm • CØ: 7 mm Applications • Internal Diameter Measurement • Bore Measurement • Slot Width Measurement • Groove Inspection • Precision Engineering Applications • Tool Room Measurement • Machine Shop Inspection • Manufacturing Quality Control • Automotive Component Inspection • General Industrial Measurement Product Video: Paste YouTube Video Link Here For more information about the Telescoping Gauges, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

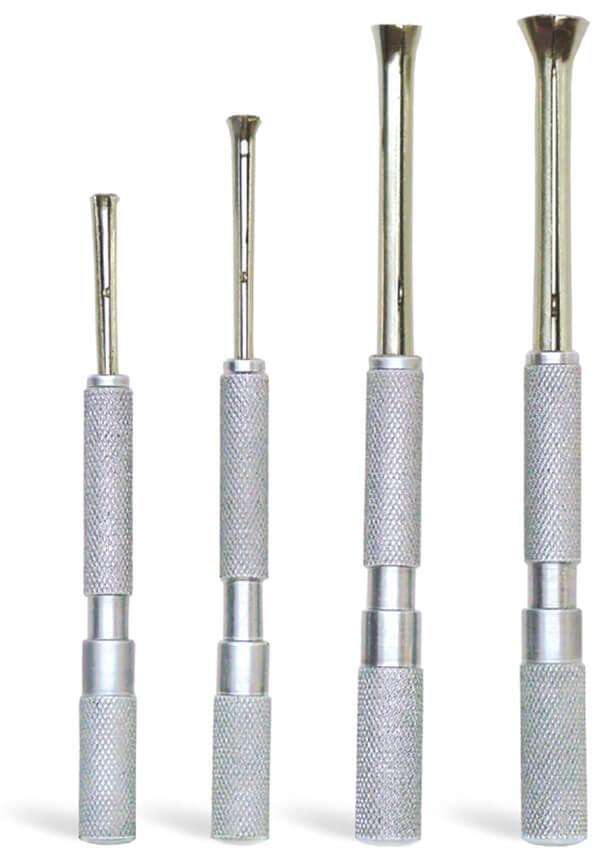

Small Hole Gauges

Small Hole Gauges The Small Hole Gauge Set is a precision measuring tool designed for measuring small holes, grooves, slots, and other internal dimensions that are difficult to access with standard measuring instruments. Widely used in machine shops, tool rooms, inspection departments, and precision engineering applications, these gauges provide a reliable method for transferring internal dimensions for measurement using an external micrometer. Manufactured with a satin chrome finish for durability and corrosion resistance, the set is supplied with four gauges covering a wide range of small internal diameters. Features • Designed for Measuring Small Holes, Grooves, and Slots • Ideal for Internal Dimension Measurement • Precision Ground Measuring Surfaces • Satin Chrome Finish for Durability • Suitable for Use with Micrometers • Compact and Easy-to-Use Design • High Accuracy Measurement Transfer • Supplied as a Complete Set of 4 Gauges Technical Specifications Model: 611-013 Measurement Range: 3 – 13 mm Set Includes: Gauge 1 • Range: 3 – 5 mm • Length (L): 90 mm • Øb: 5.5 mm • Øa: 22.5 mm --- Gauge 2 • Range: 5 – 7.5 mm • Length (L): 97.5 mm • Øb: 5.5 mm • Øa: 30 mm --- Gauge 3 • Range: 7.5 – 10 mm • Length (L): 103 mm • Øb: 8.5 mm • Øa: 35 mm --- Gauge 4 • Range: 10 – 13 mm • Length (L): 103 mm • Øb: 8.5 mm • Øa: 40 mm Finish: Satin Chrome Applications • Small Hole Measurement • Groove Measurement • Slot Measurement • Internal Diameter Inspection • Precision Engineering Applications • Tool Room Inspection • Machine Shop Measurement • Manufacturing Quality Control • Component Inspection • Workshop Measurement Applications Product Video: Paste YouTube Video Link Here For more information about the Small Hole Gauges, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.

Inside Outside Measurements

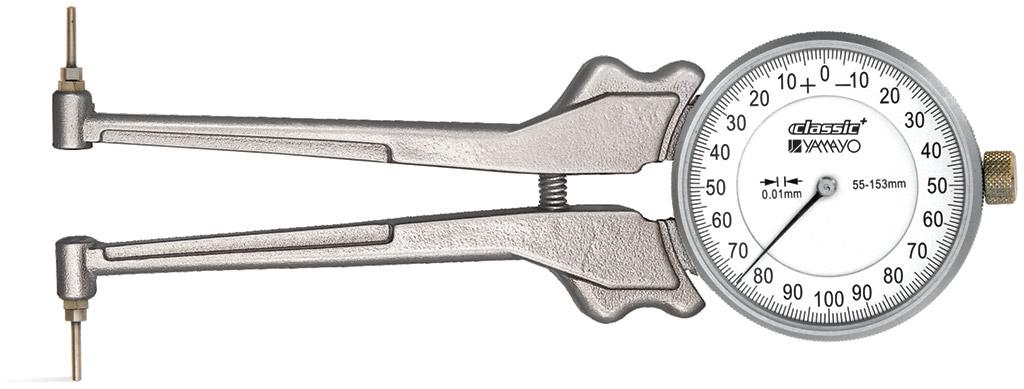

Internal Dial Caliper Gauge

Internal Dial Caliper Gauge The Internal Dial Caliper Gauge is a precision measuring instrument designed for accurate measurement of internal diameters, bore sizes, cylindrical workpieces, and recessed groove diameters. It is widely used in machining, manufacturing, automotive, engineering, quality control, and inspection applications where reliable internal dimensional measurement is required. The gauge operates on a comparative measurement principle and should be preset using a micrometer or ring gauge to the required standard dimension. A set of interchangeable contact points is supplied, allowing the instrument to cover a wide range of internal dimensions with high accuracy and repeatability. Features • Measures Internal Diameters of Cylindrical Components • Suitable for Recessed Groove Diameter Measurement • High Accuracy Comparative Measurement • Dial Indicator Display for Easy Reading • Supplied with Interchangeable Contact Points • Wide Measuring Range Coverage • Ideal for Bore and Internal Dimension Inspection • Suitable for Precision Engineering Applications • Durable and Reliable Construction • Easy Setup Using Micrometer or Ring Gauge Technical Specifications Model: YM-880 • Graduation: 0.01 mm • Measuring Range: 20 – 35 mm • Indicating Range: 2 mm • Accuracy: ±20 µm • Measuring Force: ≤ 3 N • Weight: 196 g • Maximum Depth (A): 70 mm Applications: Small Bore Measurement, Internal Diameter Inspection, Groove Diameter Measurement --- Model: YM-881 • Graduation: 0.01 mm • Measuring Range: 30 – 62 mm • Indicating Range: 2 mm • Accuracy: ±20 µm • Measuring Force: ≤ 3 N • Weight: 218 g • Maximum Depth (A): 75 mm Applications: Medium Bore Measurement, Internal Inspection, Engineering Components --- Model: YM-882 • Graduation: 0.01 mm • Measuring Range: 55 – 153 mm • Indicating Range: 2 mm • Accuracy: ±20 µm • Measuring Force: ≤ 3 N • Weight: 240 g • Maximum Depth (A): 90 mm Applications: Large Bore Measurement, Internal Diameter Verification, Precision Engineering Applications • Internal Diameter Measurement • Bore Inspection • Groove Diameter Measurement • Cylindrical Component Inspection • Automotive Components • Manufacturing Quality Control • Engineering Measurement • Tool Room Inspection • Machine Shop Applications • Precision Internal Measurement Product Video: Paste YouTube Video Link Here For more information about the Internal Dial Caliper Gauge, please contact us at 08045134493 or email [vhk_08@yahoo.com](mailto:vhk_08@yahoo.com). Our team will be happy to assist you with product specifications, pricing, and application support.
