Top Calipers,Micrometers,Metal Hardness Testers Products in Mumbai at best prices

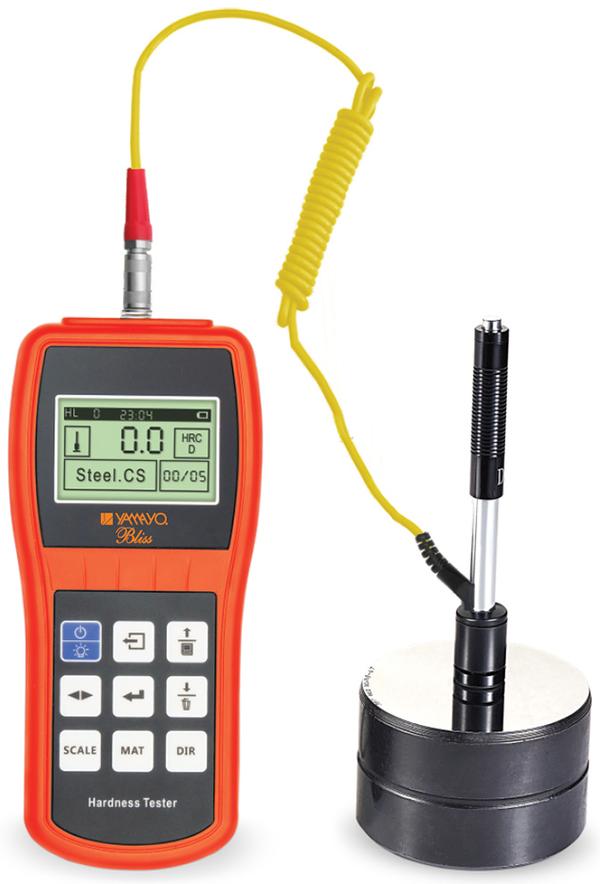

TH-170 Leeb Hardness Tester

TH-170 Portable Leeb Hardness Tester Applications The TH-170 Portable Leeb Hardness Tester is a high-accuracy hardness testing instrument designed for fast and reliable hardness measurement of a wide range of metallic materials. Equipped with a precision Lemo connector and supporting multiple optional impact devices, the tester delivers accurate results across various industrial applications. The instrument is widely used in manufacturing, metal processing, automotive, aerospace, foundries, power plants, pressure vessels, heavy engineering, quality control laboratories, maintenance inspections, and material identification applications. The TH-170 conforms to the internationally accepted ASTM A956-02 standard, making it suitable for professional hardness testing requirements. Features • High-accuracy Leeb hardness measurement • Precision Lemo connector for enhanced measurement reliability • Conforms to ASTM A956-02 international standard • Supports multiple optional impact devices for specialized applications • Measures hardness in any direction with automatic direction compensation • Wide hardness conversion range for various metals • 128 × 64 dot matrix LCD display • Adjustable display contrast with backlight • Stores up to 100 groups of measurement data • Compact, lightweight, and portable design • Low power consumption with extended standby time • User-friendly operation for field and workshop inspections • Suitable for testing large, installed, and difficult-to-move components Technical Specifications Model: TH-170 Measurement Direction: 360° Any Direction Display: 128 × 64 Dot Matrix LCD with Backlight Data Memory: 100 Groups of Readings Power Supply: 3 × 1.5V AAA Batteries Dimensions: 155 × 68 × 27 mm Weight: 0.22 kg (Host + D Impact Device) Standard Compliance: ASTM A956-02 Standard Accessories • Main Unit • D Impact Device • Standardized Test Block • Small Support Ring • Nylon Cleaning Brush • Calibration Certificate • User Manual Compatible Impact Devices • D / DC Impact Device • D+15 Impact Device • C Impact Device • G Impact Device • E Impact Device • DL Impact Device Material Measurement Capability The TH-170 supports hardness measurement and conversion for: • Steel and Cast Steel • Wrought Steel • Cold Work Tool Steel • Stainless Steel • Grey Cast Iron • Nodular Cast Iron • Cast Aluminum Alloys • Brass • Bronze • Copper Supported hardness scales include: • HRC • HRB • HRA • HB • HV • HS Product Video: https://youtu.be/YSDjQ_X5u84?si=QKUfRHtlCoI6Mcrg For more information about the TH-170 Portable Leeb Hardness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Metal Hardness Testers

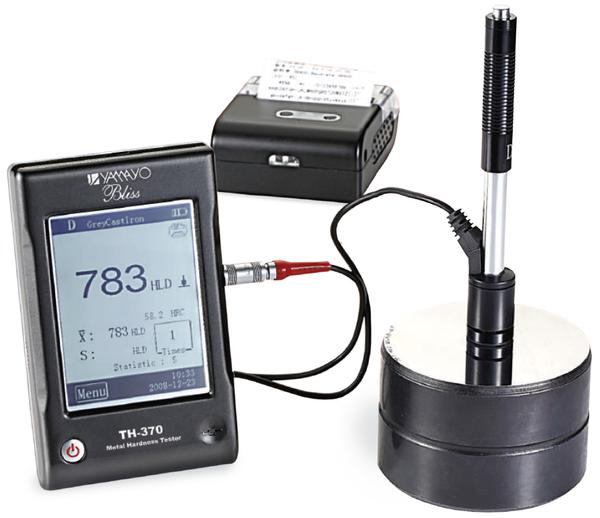

TH-370 Metal Hardness Tester

TH-370 Leeb Hardness Tester Applications The TH-370 Leeb Hardness Tester is an advanced portable hardness testing instrument featuring modern touch screen technology, high accuracy, and a wide measuring range. It is designed for hardness testing of various metallic materials across manufacturing, automotive, aerospace, metal processing, power plants, foundries, quality control laboratories, and heavy engineering industries. The instrument is ideal for testing large workpieces, installed machinery, castings, forgings, moulds, pressure vessels, bearings, and components that are difficult to test using conventional bench-top hardness testers. Features • Advanced touch screen technology for easy operation • Compact, lightweight, and portable design • High measurement accuracy and repeatability • Measures hardness in any direction with automatic impact direction compensation • Wide hardness conversion range • Supports multiple hardness scales including HRC, HRB, HB, HV, HSD, HLD, and MPa • Bright 3.9-inch color LCD display with backlight • Wireless IR communication with mini printer • Built-in rechargeable lithium-ion battery • Fast and convenient hardness testing in field and workshop applications • User-friendly interface with touch screen navigation • Suitable for testing a wide variety of metallic materials Technical Specifications Model: TH-370 Display Range: 170 ~ 960 HLD Repeatability: ±6 HLD Testing Direction: 360° Any Direction Hardness Scales: HLD, HRC, HRB, HB, HV, HSD, MPa Display: 3.9-inch LCD Display 240 × 320 Resolution Touch Screen with Backlight Operating Voltage: 3.7V Rechargeable Lithium-Ion Battery Charging Power Supply: DC 5.5V / 1A Operating Temperature: 0°C to 50°C Operating Humidity: 20% to 85% RH Storage Temperature: -10°C to 60°C Storage Humidity: 5% to 95% RH Dimensions: 135 × 83 × 24 mm Weight: 276 g (Including Impact Device) Test Object Requirements Minimum Weight of Test Object: 5 kg (For workpieces between 0.1 kg and 5 kg, coupling on a solid support is required.) Minimum Thickness of Test Object: 5 mm (For thickness between 3 mm and 5 mm, coupling is required.) Minimum Thickness of Surface Layer: 0.8 mm Minimum Radius of Curved Surface: 30 mm (11 mm with optional support rings) Measuring Range HRC: 19.8 ~ 68.5 HB: 30 ~ 655 HV: 80 ~ 976 HRB: 13.5 ~ 99.6 HSD: 26.4 ~ 99.5 MPa: 375 ~ 2639 Standard Accessories • Main Unit • Impact Device D • Standard Test Block • Mini Printer • Battery Charger • Small Support Ring • Cleaning Brush • Printer Cable Product Video: Paste YouTube Video Link Here For more information about the TH-370 Leeb Hardness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

Metal Hardness Testers

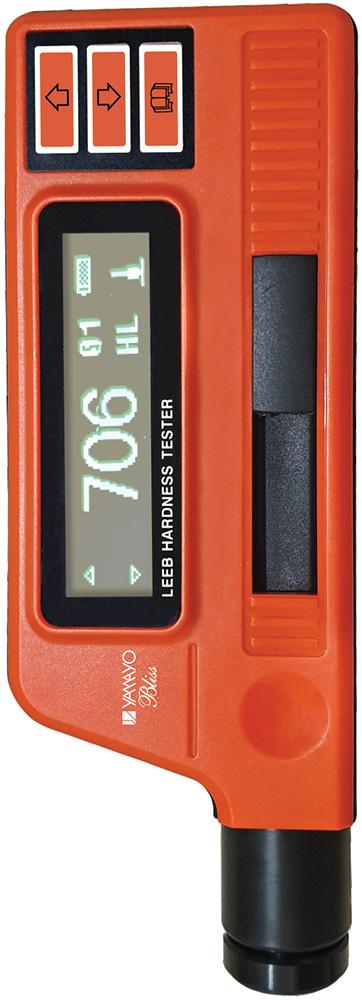

5100 Portable Hardness Tester

Portable Leeb Hardness Tester Applications The Portable Leeb Hardness Tester is a versatile and accurate instrument designed for measuring the hardness of a wide range of metallic materials. It is ideal for quality control, production inspection, maintenance, manufacturing, metallurgy, automotive, aerospace, power plants, heavy engineering, and fabrication industries. The tester is particularly useful for hardness testing of large workpieces, installed machinery, moulds, pressure vessels, bearings, castings, forgings, and other components where traditional bench-top hardness testers are not practical. Features • Large 128 × 32 OLED display for clear reading • Measures and converts hardness values into multiple scales • Supports HLD, HV, HB, HRC, HRB, HRA, and HS scales • User-friendly menu-driven operation • Mini USB interface for data transfer • Stores up to 600 groups of measurement data • Programmable upper and lower hardness limits with alarm function • Built-in calibration software • Compatible with optional impact devices: C, DC, G, D+15, and DL • Compact and lightweight portable design • Smart anti-slip housing for comfortable handling • Suitable for field and workshop hardness testing • Fast and accurate hardness measurement Technical Specifications Display: 128 × 32 OLED Matrix Display Memory Capacity: 600 Measurement Groups Data Interface: Mini USB Hardness Scales: HLD, HV, HB, HRC, HRB, HRA, HS Alarm Function: Preset Upper and Lower Hardness Limits Calibration: Built-in Calibration Software Compatible Impact Devices: D, C, DC, G, D+15, DL (Optional) Operating Temperature: -10°C to +50°C Operating Humidity: 20% to 80% RH Storage Temperature: -30°C to +80°C Storage Humidity: 5% to 95% RH Dimensions: 155 × 55 × 25 mm Weight: 160 g Typical Applications • Die cavity moulds • Heavy workpieces • Assembled and permanently installed machinery • Pressure vessels and boilers • Steam turbine generator components • Bearings and mechanical parts • Metal material identification • Quality control and inspection • Maintenance and failure analysis Measuring Range by Material Steel and Cast Steel HLD: 300 – 900 HRB: 38 – 100 HRC: 20 – 68 HB: 81 – 654 HV: 81 – 955 HS: 32 – 100 Cold Work Tool Steel HLD: 300 – 840 HRC: 20 – 67 HV: 80 – 898 Stainless Steel HLD: 300 – 800 HRB: 46 – 101 HB: 85 – 655 HV: 85 – 802 Grey Cast Iron HLD: 360 – 650 HB: 93 – 334 Nodular Cast Iron HLD: 400 – 660 HB: 131 – 387 Cast Aluminum Alloys HLD: 170 – 570 HRB: 23 – 84 HB: 19 – 164 Brass HLD: 200 – 550 HRB: 13 – 95 HB: 40 – 173 Bronze HLD: 300 – 700 HB: 60 – 290 Copper HLD: 200 – 690 HB: 45 – 315 Product Video: Paste YouTube Video Link Here For more information about the Portable Leeb Hardness Tester, please contact us at 08045134493 or email vhk_08@yahoo.com. Our team will be happy to assist you with product specifications, pricing, and application support.

TH-170 Leeb Hardness Tester

TH-370 Metal Hardness Tester

5100 Portable Hardness Tester
